Máy làm đá ống CBFI TV150

  • 80

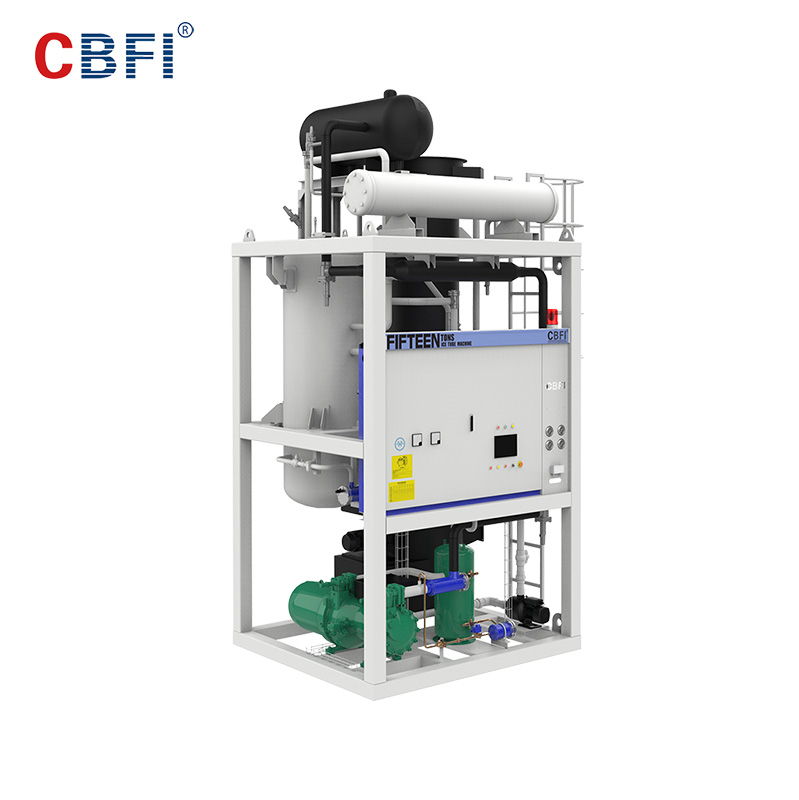

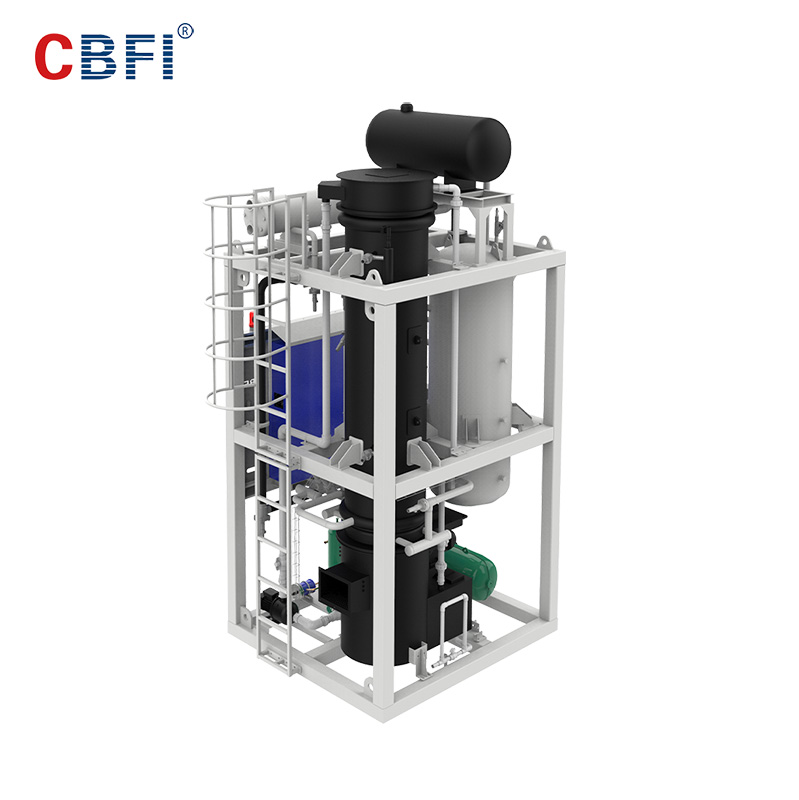

CBFI TV150 15 Tons Per Day Tube Ice Machine
MOQ: 1 set
Payment: T/T, Western Union, MoneyGram, L/C
Lead Time: 45 days after getting down payment
Certification: CE
Place of Origin: Guangzhou, China (Mainland)
Shipping Port: Guangzhou, China (Mainland)
Warranty: 1 year
After-sales Service Provided: Engineers available to service overseas

CBFI TV150 15Tons Per Day Tube Ice Machine









10 ton tube ice machine is a split type ice machine. The ice making part is set apart from the main body, so that you can design the ice plant in a better way to use all the space. It is recommended to equip a screw type ice storage with cold source. Then the tube ice could last over night before packing.





Product Features



●  Daily Production 15ton

●  3D designed to ensure the container transportation. Easy for installation & maintaining

●  Evaporator uses stainless steel & PU foam insulation, tunnels are insulated to save energy and good looking.

●  CE Certificate Approved

●  Special water system design to make ice good and evenly thickness, clear and pure

●  Unique ice harvesting way to make the process quick and low shock, more efficient and safer.

●  Special oil balance system has solved the oil loss problem that always happened in large capacity tube ice machine.



Tube Ice Application

CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-2







Drink Cooling

Food Processing

Fishery

Food Preservation

Supermarket











CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-3

CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-4

CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-5







Product Parameter





TV150 15 ton Tube Ice Machine Parameters
Name Unit Parameter
Tube Diameter mm Φ22 Φ28 Φ35





Bitzer Compressor Parameter

Model 6FE-50
Cooling Capacity(kW) 79
Power(kW) 27.9



Condenser

Model WN-55
Heat Exchange(kW) 164.5
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -12
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant   Ammonia R717
Voltage V/P/HZ 380/3/50



Motor Power

Ice Cutting Motor(kW) 1.5
Recircling Pump(kW) 1.5



Cooling Tower

Model LX-60
Power(kW) 1.5



Cooling Pump

Model GD80-21
Power 4
Cooling Fan Power Power(kW) 1.5

Water Cooling Machine Dimension

L*W*H(mm) 1900*1600*1850
Refrigerant Quantity kg 250 275 30
Machine Weight kg 3500



Product Details





product-CBFI-img-1



Compact Structure

3D design standardizes production, and making the structure more reasonable.



++





Top Brand Compressor

Bitzer from Germany, Copeland from America, those are the compressor brands we use for your better ice machine.



++

CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-7



CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-8



Special Pipe Insulation

Aluminum pipe insulation is using insulating material and aluminum surface to cover the evaporator and pipe, to increase the efficient of ice making.



++





Stainless Steel Water Pump

The water circulating pump is stainless steel pump, all material getting touch with water is food standard. The water is clean inside the system.





CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-9



CBFI-Tube Ice Maker Machine Philippines Cbfi Tv100 10 Tons Per Day-10



Danfoss Pressure Protector

The system is protected by Danfoss pressure protector to ensure the stable pressure. The products from Danfoss have better quality and accuracy.





++
